Equine veterinary equipment specialists. Offering equine scopes, operating tables and laser equipment for veterinary clinics, practices and hospitals. Hire service available. Contact us for personalised quote.
Easy to move table, adjust panels and alter table height even with horse on table
Maximum load up to 1300kg
Position the horse and limbs in almost any configuration with multiple different limb supports
Completely sealed and protected structure
Easily clean and disinfect after surgery even with pressure washer
Low 12v voltage and cable free electric unit
No cables to have to avoid during surgery or clean after surgery
Narrow middle section to prevent surgeon back strain, with ability to lower side panels to increase patient accessibility
Gas hydraulic struts on panels and head support
Height and angle of panels can be adjusted to the mm
Longitudinal tilt ability with height and all panel adjustments controlled with gas hydraulic struts.
For special surgeries, pelvic angle and head support angle can be changed in both directions.
Technical specifications-+
Dimensions
Table: 290x140cm
Extended length: 340cm
Head support: 90x100cm
Width of table excluding side panels: 50cm
Side panels, table: 50x35cm
Side panels, head support: 85x35cm
Padding thickness: 5cm
Weight: 470kg
Adjustability
Maximum height: 112cm
Minimum height: 32cm
Pelvic angle: +/-25 degrees
Head support: +/- 25 degrees
Loading
Maximum load: 1200kg
Lifting time: 30 seconds
Electric equipment
Operating voltage: 12V
Battery charging time: 6 hours
Full battery: 50-100 lifts
Table can be used during charging
What's included?-+
Equipment
Haico Telgte 2 table with special surface coating, close-cellular padding material and a seamless polyurethane surface
Haico colon tray, aluminium, small

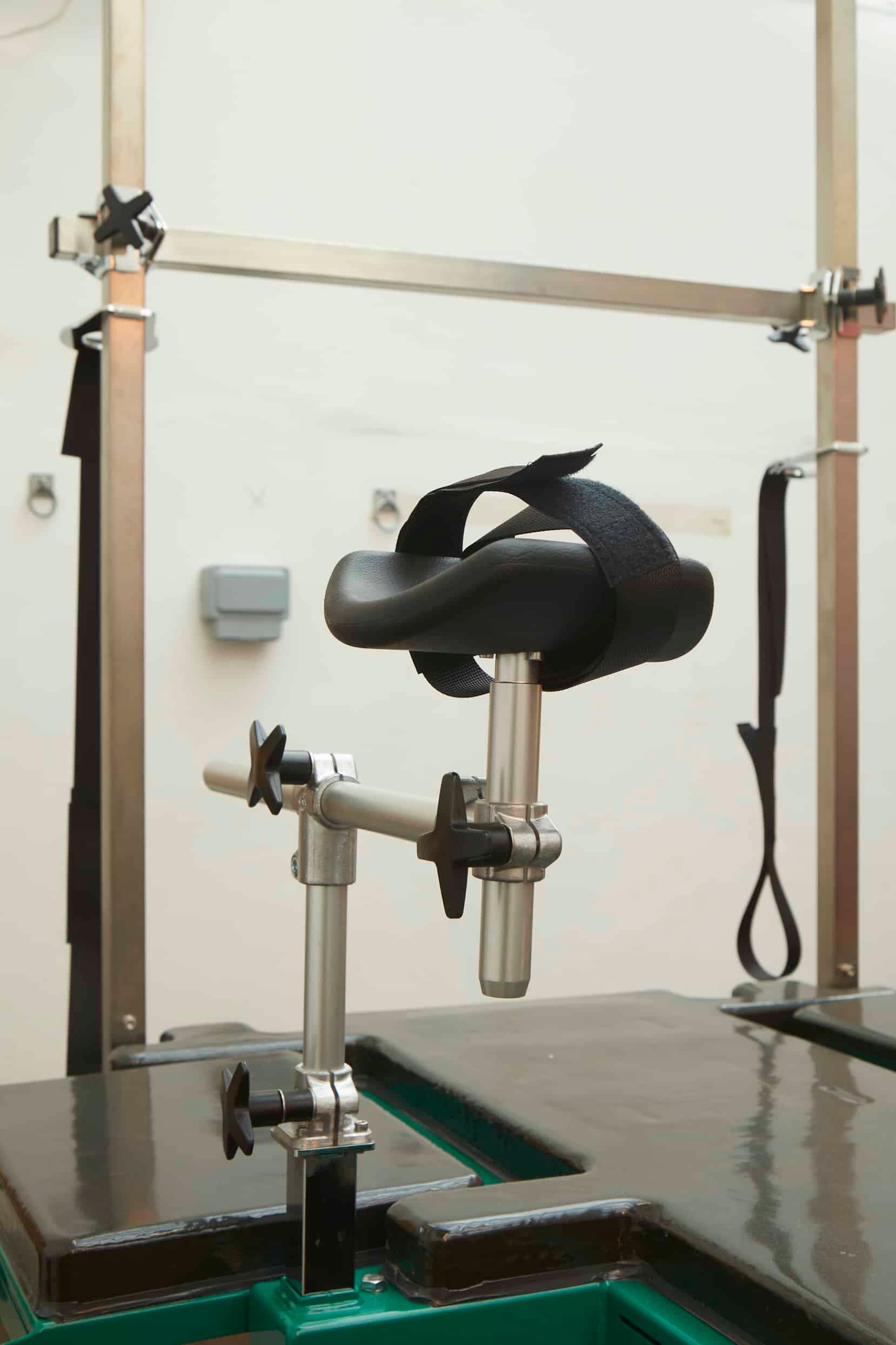

Complete leg support with a length of 230mm padded support
Stand for instruments, steel x1
Anaesthetic hose support, stainless steel x1
Lockable wheels, approx 150mm, stainless steel x4
Directional lock in one wheel
Gas hydraulic adjustable sidepanels x4
Gas hydraulic adjustable head support
Removable side panels for middle section x2
Vertical pole, length 1700mm, stainless steel x4
Horizontal bar, length 1100mm, stainless steel x2
Horizontal bar, length 2100mm, stainless steel x1
Stand for infusion bottles, chromium-plated x1
Binding rope locks, plastic x8
Self locking hold down clamps, chromium-plated x4
Velcro binding bands x4
Electrical Equipment
Cable free electrical unit
Automatic battery charger 7A wall mounted
Add-ons:
Haico dorsal/ colic mattress set
Haico lateral mattress set
Foal sternal support
Free standing leg support base
Extra shoulder supports (pair)
Extra leg support bar
Extra locking device for leg support
Adapter square/round
Extra padded limb support, length 100mm
Extra padded limb support, length 250mm with velcro
Colon tray, aluminium, large
Stand for protection plastic
Coiled cable for charger
Extra rear end leg supports
Electric air pump for the padding
Features
Completely sealed and protected structure
Easily clean and disinfect after surgery with a strong and flexible cover to protect mechanics and electronics.
Extreme versatility
Position the horse and limbs in almost any configuration with multiple different limb supports
Sense of weightlessness
Easily move table, adjust panels and alter table height even with horse on
Height and panels adjustable to the mm
Gas hydraulic struts on panels and head support mean height and angle can be adjusted to the mm
Longitudinal tilt ability
The main bed section allows up to 25% tilt
Low 12v voltage and cable free electric unit
No cables to have to avoid during surgery or clean after surgery
Dedicated customer service
Speak to a person! Our dedicated customer service team are here to help 5 days a week via Whatsapp, phone or email
Service and repairs
Our engineers service and repair 70 tables every year across the UK and Ireland
Why choose a Haico Telgte II table?
Equine surgeons all over the world choose Haico tables for their multiple surgical needs- 90,000 operations worldwide are conducted on a Haico table.
Years of intensive product development and usage guarantees the best overall quality available in the world.
MED Equus and Haico
MED Equus is the exclusive distributor of Haico tables across the UK and Ireland, with full installation and training included.
We service and repair over 70 tables per year across the UK and Ireland, ensuring the longevity and safety of the table.
The heart of the operating room.
The Haico Telgte II provides fantastic versatility as well as great manoeuverability with superior adjustability.
Extreme versatility provided by multi-functional limb supports, an extensive range of accessories (including square or triangle colic tray, anaesthetic tube support and fast on/off middle panels) with stepless locking of the side and head panels, allowing adjustability of the panels to a mm.
The main bed section allows up to 25% tilt, with height adjustable to the mm.
One directional steering lock allows steering of the table independently with 3 brake wheels providing stability.
What I like the most about the Haico Telgte table is the sense of weightlessness. Even with a 700kg horse on the table it is easy to move the horse and table, easy to adjust the panels and to alter the height.
The Haico Telgte II has excellent build quality and features some of the following advantages for ease of use, safety and function:
Low 12V voltage
Cable free electric unit
Protected structure
Functionality: Longitudinal tilt. Height and all panel adjustments can be controlled steplessly. For special surgeries, pelvic angle and head support angle can be changed in both directions. Mobility single-handedly even when loaded.
Narrow middle parts to prevent back strain
Side panels can be let down for more patient accessibility
